Explosion Proof – TEXP
Worldwide Electric manufactures Explosion Proof TEXP Motors, meeting UL and CSA safety standards for petroleum refineries, grain elevators, and chemical processing plants. The totally enclosed, explosion-proof design ensures safe, reliable performance in flammable gas, dust, or vapor environments.
Three-phase motors for hazardous locations
1 hp – 250 hp at 3600, 1800, and 1200 rpm
230/460 Volts (1 – 100 hp)
460 Volts (125 – 250 hp)
1.15 Service Factor
Premium Efficiency
Inverter duty, 5:1 CT / 10:1 VT
Description

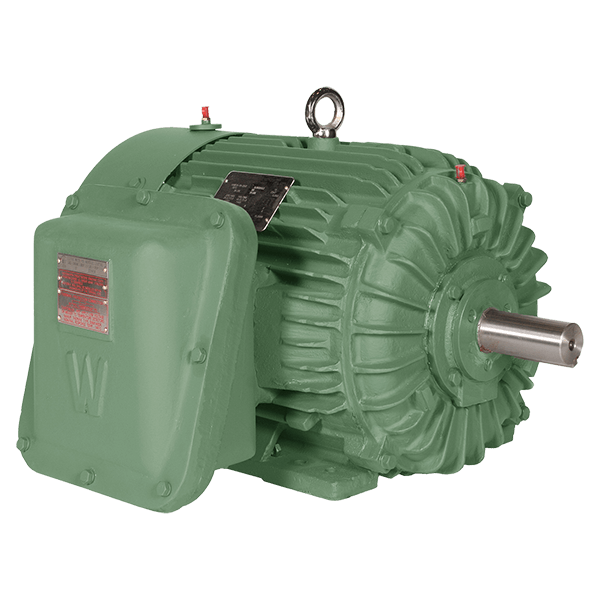

Totally Enclosed Fan Cooled Explosion Proof (TEXP) enclosure, designed for industrial applications with the presence of highly combustible, pervasive materials. Fully tested and certified for explosion-proof classification in Class 1 Division 1 Groups C & D and Class 2 Division 1 Groups F & G.
Sample Part Number: IXPEWWE7.5-36-213T. Each model number contains the product family, horsepower, rpm, voltage, and frame size. Ratings for hp with a decimal will carry a decimal to the model number, i.e. 7.5 hp becomes IXPEWWE7.5-36-213T. Ratings for rpm are divided by 100.
Features
- 1 hp to 250 hp
- 3600, 1800, and 1200 rpm
- 230/460 Volts (1 – 100 hp), 460 Volts (125 – 250 hp)
- Totally Enclosed Explosion Proof
- Service Factor: 1.15 SF
- IP55 protection
- Class F insulation
- Premium efficiency (1 – 250 hp)
- Inverter duty, 5:1 CT / 10:1 VT
- Normally-Closed winding thermostats provided
- UL Listed Class 1, Div. 1, Groups C and D; Class 2, Div. 1, Groups F and G; T3C; Inverter duty, 40°C ambient temperature as standard
- 143T – 215T: Class 1, Div. 1, Groups C and D; T3C; Inverter duty; 55°C ambient temperature
- 254T – 449T: Class 1, Div. 1, Groups C and D; T2C; Inverter duty; 55°C ambient temperature
Filters
| Model Number | Horsepower | RPM | Frame Size | Mounting Type |
|---|---|---|---|---|

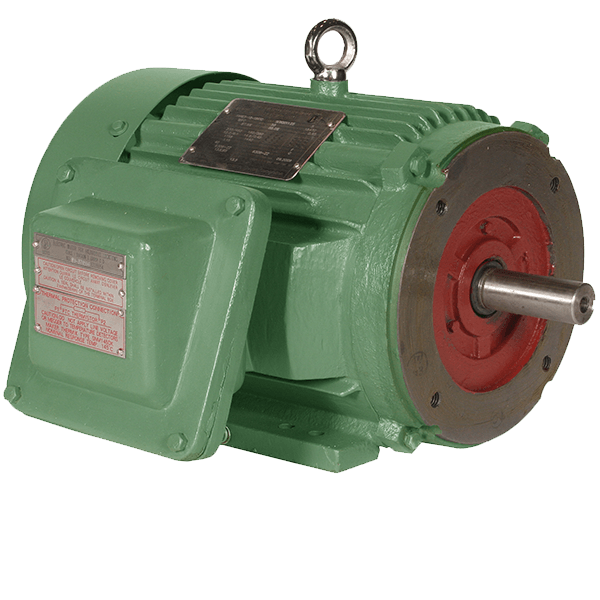

| 1.5 | 3600 | 143TC | C-Face with Feet | |
| 1.5 | 1200 | 182TC | C-Face with Feet | |
| 5 | 3600 | 184TC | C-Face with Feet | |
| 5 | 1800 | 184TC | C-Face with Feet | |
| 3 | 3600 | 182TC | C-Face with Feet | |
| 1.5 | 1800 | 145TC | C-Face with Feet | |
| 1 | 1800 | 143TC | C-Face with Feet | |
| 200 | 1800 | 447/9T | Rigid Base | |
| 75 | 1800 | 365TC | C-Face with Feet | |
| 7.5 | 3600 | 213TC | C-Face with Feet | |
| 7.5 | 1800 | 213TC | C-Face with Feet | |
| 60 | 3600 | 364TSC | C-Face with Feet | |
| 60 | 1800 | 364TC | C-Face with Feet | |
| 50 | 1800 | 326TC | C-Face with Feet | |
| 40 | 3600 | 324TSC | C-Face with Feet | |
| 40 | 1800 | 324TC | C-Face with Feet | |
| 30 | 3600 | 286TSC | C-Face with Feet | |
| 30 | 1800 | 286TC | C-Face with Feet | |
| 3 | 1800 | 182TC | C-Face with Feet | |
| 3 | 1200 | 213TC | C-Face with Feet | |
| 25 | 3600 | 284TSC | C-Face with Feet | |
| 25 | 1800 | 284TC | C-Face with Feet | |
| 20 | 3600 | 256TC | C-Face with Feet | |
| 20 | 1800 | 256TC | C-Face with Feet | |
| 2 | 1800 | 145TC | C-Face with Feet | |
| 150 | 1800 | 444/5TC | C-Face with Feet | |
| 15 | 3600 | 254TC | C-Face with Feet | |
| 15 | 1800 | 254TC | C-Face with Feet | |
| 15 | 1200 | 284TC | C-Face with Feet | |
| 125 | 1800 | 444/5TC | C-Face with Feet | |
| 100 | 3600 | 405TSC | C-Face with Feet | |
| 100 | 1800 | 405TC | C-Face with Feet | |
| 10 | 3600 | 215TC | C-Face with Feet | |
| 10 | 1800 | 215TC | C-Face with Feet | |
| 10 | 1200 | 256TC | C-Face with Feet | |
| 75 | 3600 | 365TS | Rigid Base | |
| 75 | 1800 | 365T | Rigid Base | |
| 75 | 1200 | 405T | Rigid Base | |
| 7.5 | 3600 | 213T | Rigid Base | |
| 7.5 | 1800 | 213T | Rigid Base | |
| 7.5 | 1200 | 254T | Rigid Base | |
| 60 | 3600 | 364TS | Rigid Base | |
| 60 | 1800 | 364T | Rigid Base | |
| 60 | 1200 | 404T | Rigid Base | |
| 50 | 3600 | 326TS | Rigid Base | |
| 50 | 1800 | 326T | Rigid Base | |
| 50 | 1200 | 365T | Rigid Base | |
| 5 | 3600 | 184T | Rigid Base | |
| 5 | 1800 | 184T | Rigid Base | |
| 5 | 1200 | 215T | Rigid Base | |
| 40 | 3600 | 324TS | Rigid Base | |
| 40 | 1800 | 324T | Rigid Base | |
| 40 | 1200 | 364T | Rigid Base | |
| 30 | 3600 | 286TS | Rigid Base | |
| 30 | 1800 | 286T | Rigid Base | |
| 30 | 1200 | 326T | Rigid Base | |
| 3 | 3600 | 182T | Rigid Base | |
| 3 | 1800 | 182T | Rigid Base | |
| 3 | 1200 | 213T | Rigid Base | |
| 250 | 1800 | 447/9T | Rigid Base | |
| 25 | 3600 | 284TS | Rigid Base | |
| 25 | 1800 | 284T | Rigid Base | |
| 25 | 1200 | 324T | Rigid Base | |
| 200 | 3600 | 444/5TS | Rigid Base | |
| 200 | 1200 | 447/9T | Rigid Base | |
| 20 | 3600 | 256T | Rigid Base | |
| 20 | 1800 | 256T | Rigid Base | |
| 20 | 1200 | 286T | Rigid Base | |
| 2 | 3600 | 145T | Rigid Base | |
| 2 | 1800 | 145T | Rigid Base | |
| 2 | 1200 | 184T | Rigid Base | |
| 150 | 3600 | 444/5TS | Rigid Base | |
| 150 | 1800 | 444/5T | Rigid Base | |
| 150 | 1200 | 447/9T | Rigid Base | |
| 15 | 3600 | 254T | Rigid Base | |
| 15 | 1800 | 254T | Rigid Base | |
| 15 | 1200 | 284T | Rigid Base | |
| 125 | 3600 | 444/5TS | Rigid Base | |
| 125 | 1800 | 444/5T | Rigid Base | |
| 100 | 3600 | 405TS | Rigid Base | |
| 100 | 1800 | 405T | Rigid Base | |
| 100 | 1200 | 444/5T | Rigid Base | |
| 100 | 1200 | 444/5T | Rigid Base | |
| 10 | 3600 | 215T | Rigid Base | |
| 10 | 1800 | 215T | Rigid Base | |
| 10 | 1200 | 256T | Rigid Base | |
| 1.5 | 3600 | 143T | Rigid Base | |
| 1.5 | 1800 | 145T | Rigid Base | |
| 1.5 | 1200 | 182T | Rigid Base | |
| 1 | 1800 | 143T | Rigid Base | |
| 1 | 1200 | 145T | Rigid Base |
