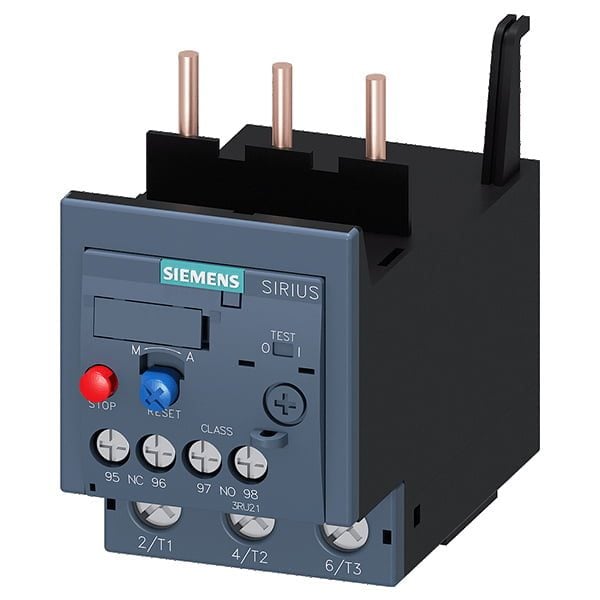

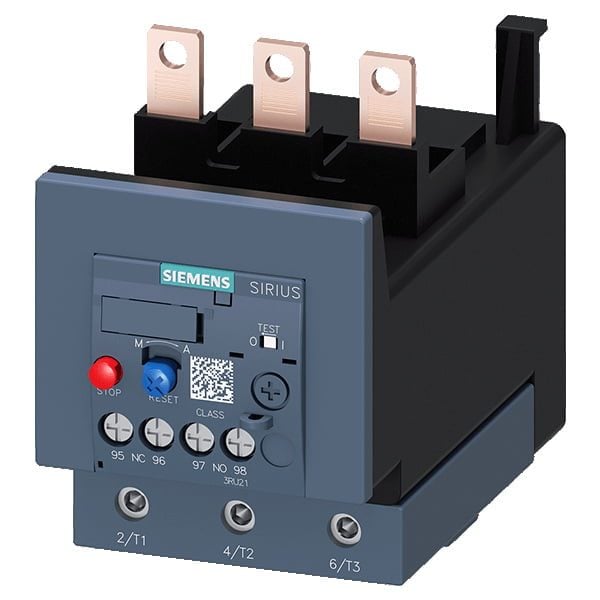

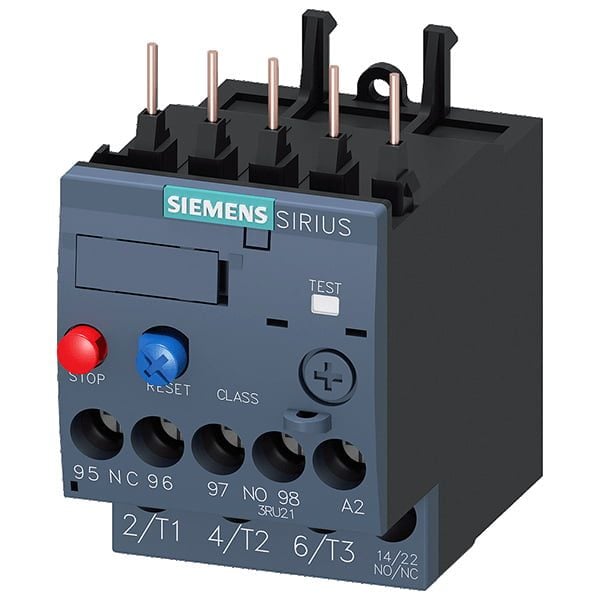

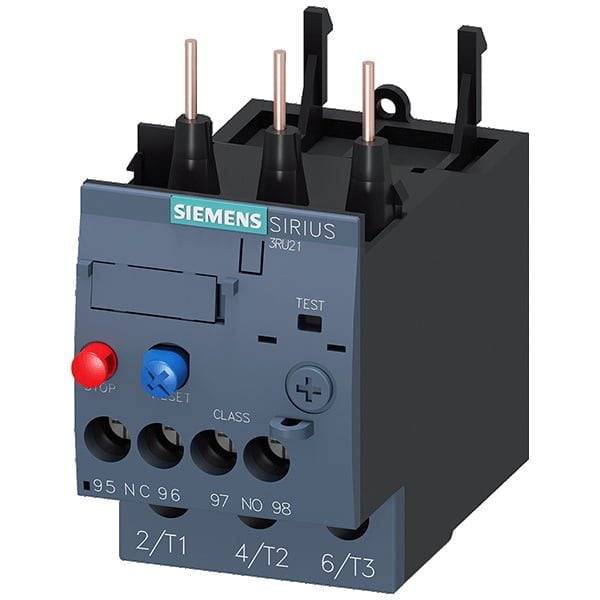

Siemens IEC Thermal Overload Relays
Sirius overload relays with screw-type, spring-loaded or ring cable lug connections reliably protect loads as well as other switching and protective devices in the respective load feeder against overload, phase asymmetry and phase failure.
Features
- Thermal Class 10
- 1NO, 1NC contacts
- Manual / automatic reset
- Test function
- Direct mount
Downloads
Filters
| Model Number | Frame Size | Setting Range Amp |
|---|---|---|
| S3 | 70 - 90 | |
| S3 | 80 -100 | |
| S3 | 28 - 40 | |
| S3 | 36 - 50 | |
| S2 | 47 - 57 | |
| S2 | 70 - 80 | |
| S2 | 62 - 73 | |
| S2 | 40 - 50 | |
| S2 | 54 - 65 | |
| S2 | 28 - 40 | |
| S2 | 36 - 45 | |
| S0 | 30 - 36 | |
| S2 | 22 - 32 | |
| S0 | 34 - 40 | |
| S0 | 23 - 28 | |
| S0 | 20 - 25 | |
| S0 | 27 - 32 | |
| S0 | 14 - 20 | |
| S0 | 17 - 22 | |
| S0 | 11 - 16 | |
| S0 | 7 - 10 | |
| S0 | 9 - 12.5 | |
| S0 | 4.5 - 6.3 | |
| S0 | 5.5 - 8 | |
| S0 | 2.8 - 4 | |
| S0 | 3.5 - 5 | |
| S0 | 22 - 32 | |
| S0 | 1.8 - 2.5 | |
| S00 | 9 - 12.5 | |
| S0 | 11 - 16 | |
| S00 | 5.5 - 8 | |
| S00 | 7 - 10 | |
| S00 | 3.5 - 5 | |
| S00 | 4.5 - 6.3 | |
| S00 | 22 - 32 | |
| S00 | 2.8 - 4 | |
| S00 | 1.4 - 2 | |
| S00 | 1.8 - 2.5 | |
| S00 | 11 - 16 | |
| S00 | 0.7 - 1.0 | |
| S00 | 0.9 - 1.25 | |
| S00 | 0.45 -0.63 | |
| S00 | 0.55 - 0.8 | |
| S00 | 0.28 - 0.4 | |
| S00 | 0.35 - 0.5 | |
| S00 | 0.18 - 0.25 | |
| S00 | 0.22 - 0.32 | |
| S00 | 0.11 - 0.16 | |
| S00 | 0.14 - 0.2 |
