Vertical Hollow Shaft Motors
V Series by North American Electric
Three-phase, Open Weather-Protected Premium Efficient Motors for Deep Well Turbine Pump Applications
Description
The Vertical Hollow Shaft (VHS) Pump Motors are specifically designed for deep well turbine pump applications. Equipped with a coupling that includes a non-reverse ratchet, these motors prevent backspin at shutdown, ensuring reliable performance. NAE’s VHS motors are built to NEMA standards and feature specialized bearing arrangements to handle heavy thrust loads, providing optimal operation.
VHS motors provide easy maintenance, with accessible components that reduce downtime and maintenance costs. They offer efficiency and durability, even in demanding environments, making them ideal for municipal water supply, agricultural irrigation, and industrial water systems. Their advanced design ensures optimal alignment with pump systems, enhancing overall system reliability and performance.
- Output: 10-250 hp
- Speed: 1800 rpm
- Voltage: 230/460
- Service Factor: 1.15 @ 60 Hz
Features
Product Features
– 10-250 HP in stock
– Service factor: 1.15 @ 60 Hz
-NEMA Design B Performance
– High/ Extra High Thrust
– Oil bath with large reservoir (40-250 HP)
– Light weight hood for easy access lifting provisions
– Oversized angular contact bearing and ball bearing
– High thrust (10 HP—250 HP)
– Extra high thrust/ double stacked bearing available (100-250 HP)
– Non-reverse ratchet (ball type)
– 2-year warranty (extended warranty available)
– Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings
– Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint
– Enclosure: WP1-open weather-protected machine type 1
– Cast iron/ plate steel frame construction
– Space heaters
– Thermal protected
– Insulated bearing mounts (40-250 HP)
– 40° C ambient continuous duty
– Dual voltage ratings suitable for part wind start on 230V; single voltage ratings are suitable for part wind start at 230V

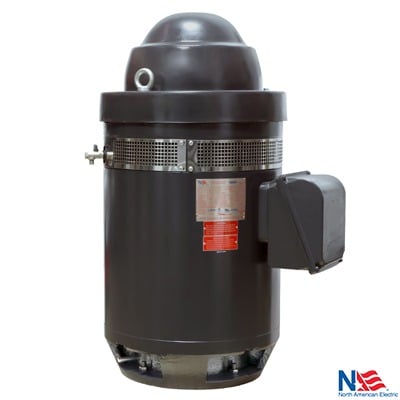

– Inverter duty with windings rated for 2200V peak voltage spike (V2 Series)

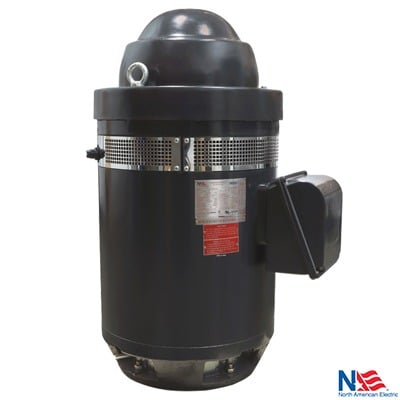

– Windings rated for 1600V peak voltage spike (V1 Series)
Applications
– Deep well turbine pump application
– Coupling equipped with non-reverse ratchet, which prevents motor rotation from backspin at shutdown
– Special bearing arrangement to carry heavy thrust loads
– Suitable for use with VFDs
Options (May not be available for all models)
– Parts and accessories available
Filters
Model Number | Horsepower | RPM | Frame Size | Voltage |
---|---|---|---|---|
75 | 1800 | 365TP | 460 | |
75 | 1800 | 365TP | 460 | |
75 | 1800 | 365TP | 230/460 | |
75 | 1800 | 365TP | 230/460 | |
60 | 1800 | 364TP | 460 | |
60 | 1800 | 364TP | 460 | |
60 | 1800 | 364TP | 230/460 | |
60 | 1800 | 364TP | 230/460 | |
50 | 1800 | 326TP | 460 | |
50 | 1800 | 326TP | 230/460 | |
50 | 1800 | 326TP | 230/460 | |
40 | 1800 | 324TP | 460 | |
40 | 1800 | 324TP | 460 | |
40 | 1800 | 324TP | 230/460 | |
40 | 1800 | 324TP | 230/460 | |
30 | 1800 | 286TP | 230/460 | |
30 | 1800 | 286TP | 230/460 | |
25 | 1800 | 284TP | 230/460 | |
25 | 1800 | 284TP | 230/460 | |
250 | 1800 | 445TP | 460 | |
250 | 1800 | 445TP | 460 | |
20 | 1800 | 256TP | 230/460 | |
200 | 1800 | 445TP | 460 | |
200 | 1800 | 445TP | 460 | |
200 | 1800 | 445TP | 460 | |
15 | 1800 | 254TP | 230/460 | |
150 | 1800 | 444TP | 460 | |
150 | 1800 | 444TP | 460 | |
125 | 1800 | 405TP | 460 | |
125 | 1800 | 405TP | 460 | |
10 | 1800 | 215TP | 230/460 | |
100 | 1800 | 404TP | 460 | |
100 | 1800 | 404TP | 460 | |
100 | 1800 | 404TP | 230/460 | |
100 | 1800 | 404TP | 230/460 | |
75 | 1800 | 365TP | 460 | |
75 | 1800 | 365TP | 460 | |
75 | 1800 | 365TP | 230/460 | |
75 | 1800 | 365TP | 230/460 | |
60 | 1800 | 364TP | 460 | |
60 | 1800 | 364TP | 460 | |
60 | 1800 | 364TP | 230/460 | |
60 | 1800 | 364TP | 230/460 | |
50 | 1800 | 326TP | 460 | |
50 | 1800 | 326TP | 460 | |
50 | 1800 | 326TP | 230/460 | |
50 | 1800 | 326TP | 230/460 | |
40 | 1800 | 324TP | 460 | |
40 | 1800 | 324TP | 460 | |
40 | 1800 | 324TP | 230/460 | |
40 | 1800 | 324TP | 230/460 | |
30 | 1800 | 286TP | 230/460 | |
30 | 1800 | 286TP | 230/460 | |
30 | 1800 | 286TP | 230/460 | |
25 | 1800 | 284TP | 230/460 | |
25 | 1800 | 284TP | 230/460 | |
250 | 1800 | 445TP | 460 | |
250 | 1800 | 445TP | 460 | |
20 | 1800 | 256TP | 230/460 | |
200 | 1800 | 445TP | 460 | |
200 | 1800 | 445TP | 460 | |
200 | 1800 | 445TP | 460 | |
15 | 1800 | 254TP | 230/460 | |
150 | 1800 | 444TP | 460 | |
150 | 1800 | 444TP | 460 | |
125 | 1800 | 405TP | 460 | |
125 | 1800 | 405TP | 460 | |
10 | 1800 | 215TP | 230/460 | |
100 | 1800 | 404TP | 460 | |
100 | 1800 | 404TP | 460 | |
100 | 1800 | 404TP | 230/460 | |
100 | 1800 | 404TP | 230/460 |
