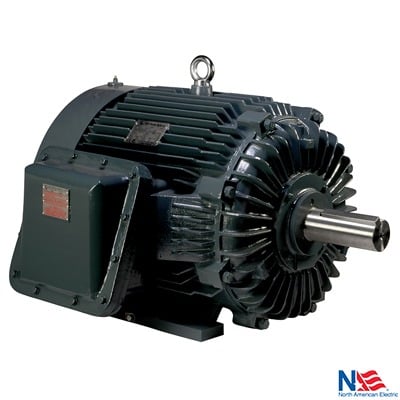

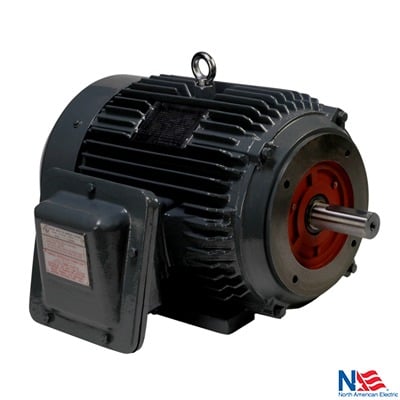

Explosion Proof Motors

PEXP Series by North American Electric

Filters

Model Number	Horsepower	RPM	Frame Size	Voltage
PEXP449TSC-250-2	250	3600	449TSC	460
PEXP449TS-250-2	250	3600	449TS	460
PEXP449TC-250-4	250	1800	449TC	460
PEXP449T-250-4	250	1800	449T	460
PEXP447TS-200-2	200	3600	447TS	460
PEXP447TSC-200-2	200	3600	447TSC	460
PEXP447T-200-4	200	1800	447T	460
PEXP447TC-200-4	200	1800	447TC	460
PEXP449TC-200-6	200	1200	449TC	460
PEXP449T-200-6	200	1200	449T	460
PEXP445TSC-150-2	150	3600	445TSC	460
PEXP445TS-150-2	150	3600	445TS	460
PEXP445TC-150-4	150	1800	445TC	460
PEXP445T-150-4	150	1800	445T	460
PEXP447TC-150-6	150	1200	447TC	460
PEXP447T-150-6	150	1200	447T	460
PEXP444TSC-125-2	125	3600	444TSC	460
PEXP444TS-125-2	125	3600	444TS	460
PEXP444TC-125-4	125	1800	444TC	460
PEXP444T-125-4	125	1800	444T	460
PEXP445TC-125-6	125	1200	445TC	460
PEXP445T-125-6	125	1200	445T	460
PEXP405TSC-100-2	100	3600	405TSC	208-230/460
PEXP405TS-100-2	100	3600	405TS	208-230/460
PEXP405TC-100-4	100	1800	405TC	208-230/460
PEXP405T-100-4	100	1800	405T	208-230/460
PEXP444TC-100-6	100	1200	444TC	460
PEXP444T-100-6	100	1200	444T	460
PEXP365TSC-75-2	75	3600	365TSC	208-230/460
PEXP365TS-75-2	75	3600	365TS	208-230/460
PEXP365TC-75-4	75	1800	365TC	208-230/460
PEXP365T-75-4	75	1800	365T	208-230/460
PEXP405TC-75-6	75	1200	405TC	208-230/460
PEXP405T-75-6	75	1200	405T	208-230/460
PEXP364TSC-60-2	60	3600	364TSC	208-230/460
PEXP364TS-60-2	60	3600	364TS	208-230/460
PEXP364TC-60-4	60	1800	364TC	208-230/460
PEXP364T-60-4	60	1800	364T	208-230/460
PEXP404TC-60-6	60	1200	404TC	208-230/460
PEXP404T-60-6	60	1200	404T	208-230/460
PEXP326TSC-50-2	50	3600	326TSC	208-230/460
PEXP326TS-50-2	50	3600	326TS	208-230/460
PEXP326TC-50-4	50	1800	326TC	208-230/460
PEXP326T-50-4	50	1800	326T	208-230/460
PEXP365TC-50-6	50	1200	365TC	208-230/460
PEXP365T-50-6	50	1200	365T	208-230/460
PEXP324TSC-40-2	40	3600	324TSC	208-230/460
PEXP324TS-40-2	40	3600	324TS	208-230/460
PEXP324TC-40-4	40	1800	324TC	208-230/460
PEXP324T-40-4	40	1800	324T	208-230/460
PEXP364TC-40-6	40	1200	364TC	208-230/460
PEXP364T-40-6	40	1200	364T	208-230/460
PEXP286TSC-30-2	30	3600	286TSC	208-230/460
PEXP286TS-30-2	30	3600	286TS	208-230/460
PEXP286TC-30-4	30	1800	286TC	208-230/460
PEXP286T-30-4	30	1800	286T	208-230/460
PEXP326TC-30-6	30	1200	326TC	208-230/460
PEXP326T-30-6	30	1200	326T	208-230/460
PEXP284TSC-25-2	25	3600	284TSC	208-230/460
PEXP284TS-25-2	25	3600	284TS	208-230/460
PEXP284TC-25-4	25	1800	284TC	208-230/460
PEXP284T-25-4	25	1800	284T	208-230/460
PEXP324TC-25-6	25	1200	324TC	208-230/460
PEXP324T-25-6	25	1200	324T	208-230/460
PEXP256TC-20-2	20	3600	256TC	208-230/460
PEXP256T-20-2	20	3600	256T	208-230/460
PEXP256TC-20-4	20	1800	256TC	208-230/460
PEXP256T-20-4	20	1800	256T	208-230/460
PEXP286TC-20-6	20	1200	286TC	208-230/460
PEXP286T-20-6	20	1200	286T	208-230/460
PEXP254TC-15-2	15	3600	254TC	208-230/460
PEXP254T-15-2	15	3600	254T	208-230/460
PEXP254TC-15-4	15	1800	254TC	208-230/460
PEXP254T-15-4	15	1800	254T	208-230/460
PEXP284TC-15-6	15	1200	284TC	208-230/460
PEXP284T-15-6	15	1200	284T	208-230/460
PEXP215TC-10-2	10	3600	215TC	208-230/460
PEXP215T-10-2	10	3600	215T	208-230/460
PEXP215TC-10-4	10	1800	215TC	208-230/460
PEXP215T-10-4	10	1800	215T	208-230/460
PEXP256TC-10-6	10	1200	256TC	208-230/460
PEXP256T-10-6	10	1200	256T	208-230/460
PEXP213TC-7.5-2	7.5	3600	213TC	208-230/460
PEXP213T-7.5-2	7.5	3600	213T	208-230/460
PEXP213TC-7.5-4	7.5	1800	213TC	208-230/460
PEXP213T-7.5-4	7.5	1800	213T	208-230/460
PEXP254TC-7.5-6	7.5	1200	254TC	208-230/460
PEXP254T-7.5-6	7.5	1200	254T	208-230/460
PEXP184TC-5-2	5	3600	184TC	208-230/460
PEXP184T-5-2	5	3600	184T	208-230/460
PEXP184TC-5-4	5	1800	184TC	208-230/460
PEXP184T-5-4	5	1800	184T	208-230/460
PEXP215TC-5-6	5	1200	215TC	208-230/460
PEXP215T-5-6	5	1200	215T	208-230/460
PEXP182TC-3-2	3	3600	182TC	208-230/460
PEXP182T-3-2	3	3600	182T	208-230/460
PEXP182TC-3-4	3	1800	182TC	208-230/460
PEXP182T-3-4	3	1800	182T	208-230/460
PEXP213TC-3-6	3	1200	213TC	208-230/460
PEXP213T-3-6	3	1200	213T	208-230/460
PEXP145TC-2-2	2	3600	145TC	208-230/460
PEXP145T-2-2	2	3600	145T	208-230/460
PEXP145TC-2-4	2	1800	145TC	208-230/460
PEXP145T-2-4	2	1800	145T	208-230/460
PEXP184TC-2-6	2	1200	184TC	208-230/460
PEXP184T-2-6	2	1200	184T	208-230/460
PEXP143TC-1.5-2	1.5	3600	143TC	208-230/460
PEXP143T-1.5-2	1.5	3600	143T	208-230/460
PEXP145TC-1.5-4	1.5	1800	145TC	208-230/460
PEXP145T-1.5-4	1.5	1800	145T	208-230/460
PEXP182TC-1.5-6	1.5	1200	182TC	208-230/460
PEXP182T-1.5-6	1.5	1200	182T	208-230/460
PEXP143TC-1-4	1	1800	143TC	208-230/460
PEXP143T-1-4	1	1800	143T	208-230/460
PEXP145TC-1-6	1	1200	145TC	208-230/460
PEXP145T-1-6	1	1200	145T	208-230/460
