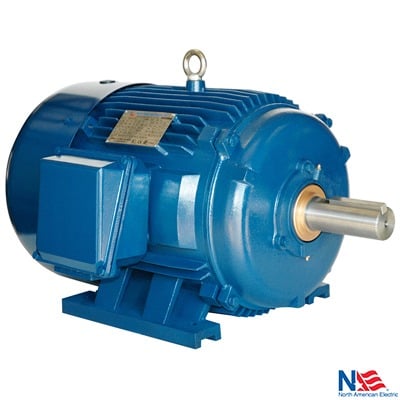

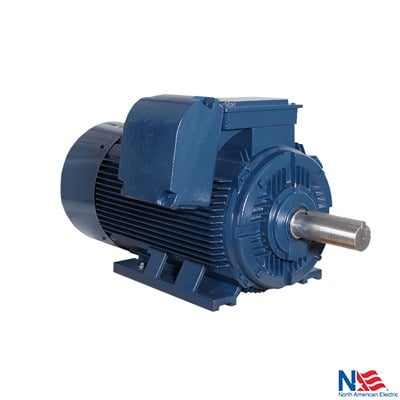

Crusher Duty Motors

PE Series by North American Electric
Three-phase, NEMA Design B Motors for Demanding Crusher Duty

Filters

Model Number	Horsepower	RPM	Frame Size	Voltage
PE587UZ-600-4C	600	1800	587UZ	460
PE587UZ-500-6C	500	1200	587UZ	460
PE587UZ-500-4C	500	1800	587UZ	460
PE587UZ-450-6C	450	1200	587UZ	460
PE587UZ-450-4C	450	1800	587UZ	460
PE587UZ-400-6C	400	1200	587UZ	460
PE587UZ-400-4C	400	1800	587UZ	460
PE587UZ-350-6C	350	1200	587UZ	460
PE587UZ-350-4C	350	1800	587UZ	460
PE587UZ-300-6C	300	1200	587UZ	460
PE505UZ-350-6C	350	1200	505UZ	460
PE505UZ-350-4C	350	1800	505UZ	460
PE505UZ-300-6C	300	1200	505UZ	460
PE449T-300-6C	300	1200	449T	460
PE505UZ-300-4C	300	1800	505UZ	460
PE449T-300-4C	300	1800	449T	460
PE505UZ-250-6C	250	1200	505UZ	460
PE449T-250-6C	250	1200	449T	460
PE505UZ-250-4C	250	1800	505UZ	460
PE449T-250-4C	200	1800	449T	460
PE449T-200-6C	200	1200	449T	460
PE447T-200-4C	200	1800	447T	460
PE447T-150-6C	150	1200	447T	460
PE445T-150-4C	150	1800	445T	460
PE449T-150-8C	150	900	449T	460
PE445T-125-6C	125	1200	445T	460
PE444T-125-4C	125	1800	444T	460
PE447T-125-8C	125	900	447T	460
PE444T-100-6C	100	1200	444T	208-230/460
PE405T-100-4C	100	1800	405T	208-230/460
PE445T-100-8C	100	900	445T	208-230/460
PE405T-75-6C	75	1200	405T	208-230/460
PE365T-75-4C	75	1800	365T	208-230/460
PE444T-75-8C	75	900	444T	208-230/460
PE404T-60-6C	60	1200	404T	208-230/460
PE364T-60-4C	60	1800	364T	208-230/460
PE405T-60-8C	60	900	405T	208-230/460
PE365T-50-6C	50	1200	365T	208-230/460
PE326T-50-4C	50	1800	326T	208-230/460
PE404T-50-8C	50	900	404T	208-230/460
PE364T-40-6C	40	1200	364T	208-230/460
PE324T-40-4C	40	1800	324T	208-230/460
PE365T-40-8C	40	900	365T	208-230/460
PE326T-30-6C	30	1200	326T	208-230/460
PE286T-30-4C	30	1800	286T	208-230/460
PE364T-30-8C	30	900	364T	208-230/460
PE324T-25-6C	25	1200	324T	208-230/460
PE284T-25-4C	25	1800	284T	208-230/460
PE326T-25-8C	25	900	326T	208-230/460
PE286T-20-6C	20	1200	286T	208-230/460
PE256T-20-4C	20	1800	256T	208-230/460
PE324T-20-8C	20	900	324T	208-230/460
PE284T-15-6C	15	1200	284T	208-230/460
PE254T-15-4C	15	1800	254T	208-230/460
PE286T-15-8C	15	900	286T	208-230/460
PE256T-10-6C	10	1200	256T	208-230/460
PE215T-10-4C	10	1800	215T	208-230/460
PE284T-10-8C	10	900	284T	208-230/460
PE254T-7.5-6C	7.5	1200	254T	208-230/460
PE213T-7.5-4C	7.5	1800	213T	208-230/460
PE256T-7.5-8C	7.5	900	256TC	208-230/460
PE215T-5-6C	5	1200	215T	208-230/460
PE184T-5-4C	5	1800	184T	208-230/460
PE254T-5-8C	5	900	254TC	208-230/460
PE213T-3-6C	3	1200	213T	208-230/460
PE182T-3-4C	3	1800	182T	208-230/460
PE215T-3-8C	3	900	215TC	208-230/460
PE184T-2-6C	2	1200	184T	208-230/460
PE145T-2-4C	2	1800	145T	208-230/460
PE213T-2-8C	2	900	213TC	208-230/460
PE182T-1.5-6C	1.5	1200	182T	208-230/460
PE145T-1.5-4C	1.5	1800	145T	208-230/460
PE184T-1.5-8C	1.5	900	184TC	208-230/460
PE145T-1-6C	1	1200	145T	208-230/460
PE143T-1-4C	1	1800	143T	208-230/460
PE182T-1-8C	1	900	182TC	208-230/460
PE449TC-300-6C	300	1200	449TC	460
PE449TC-300-4C	300	1800	449TC	460
PE449TC-250-6C	250	1200	449TC	460
PE449TC-250-4C	250	1800	449TC	460
PE449TC-200-6C	200	1200	449TC	460
PE447TC-200-4C	200	1800	447TC	460
PE447TC-150-6C	150	1200	447TC	460
PE445TC-150-4C	150	1800	445TC	460
PE445TC-125-6C	125	1200	445TC	460
PE444TC-125-4C	125	1800	444TC	460
PE444TC-100-6C	100	1200	444TC	208-230/460
PE405TC-100-4C	100	1800	405TC	208-230/460
PE405TC-75-6C	75	1200	405TC	208-230/460
PE365TC-75-4C	75	1800	365TC	208-230/460
PE404TC-60-6C	60	1200	404TC	208-230/460
PE364TC-60-4C	60	1800	364TC	208-230/460
PE365TC-50-6C	50	1200	365TC	208-230/460
PE326TC-50-4C	50	1800	326TC	208-230/460
PE364TC-40-6C	40	1200	364TC	208-230/460
PE324TC-40-4C	40	1800	324TC	208-230/460
PE326TC-30-6C	30	1200	326TC	208-230/460
PE286TC-30-4C	30	1800	286TC	208-230/460
PE324TC-25-6C	25	1200	324TC	208-230/460
PE284TC-25-4C	25	1800	284TC	208-230/460
PE286TC-20-6C	20	1200	286TC	208-230/460
PE256TC-20-4C	20	1800	256TC	208-230/460
PE284TC-15-6C	15	1200	284TC	208-230/460
PE254TC-15-4C	15	1800	254TC	208-230/460
PE256TC-10-6C	10	1200	256TC	208-230/460
PE215TC-10-4C	10	1800	215TC	208-230/460
PE254TC-7.5-6C	7.5	1200	254TC	208-230/460
PE213TC-7.5-4C	7.5	1800	213TC	208-230/460
PE215TC-5-6C	5	1200	215TC	208-230/460
PE184TC-5-4C	5	1800	184TC	208-230/460
PE213TC-3-6C	3	1200	213TC	208-230/460
PE182TC-3-4C	3	1800	182TC	208-230/460
PE184TC-2-6C	2	1200	184TC	208-230/460
PE145TC-2-4C	2	1800	145TC	208-230/460
PE182TC-1.5-6C	1.5	1200	182TC	208-230/460
PE145TC-1.5-4C	1.5	1800	145TC	208-230/460
PE145TC-1-6C	1	1200	145TC	208-230/460
PE143TC-1-4C	1	1800	143TC	208-230/460
