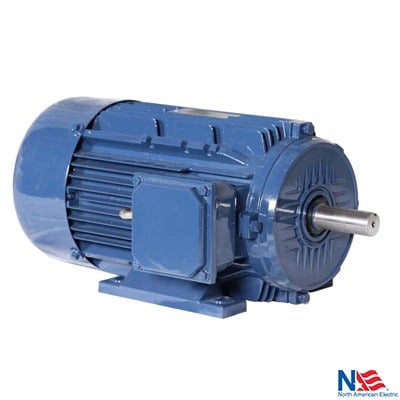

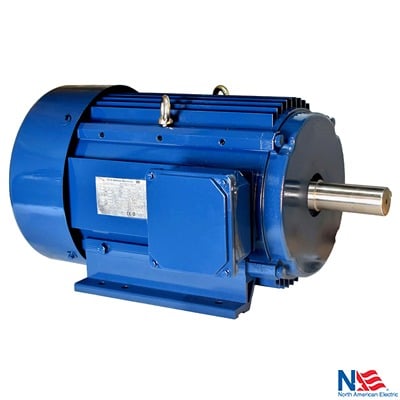

Aluminum Motors
APE Series by North American Electric
Three-phase Motors General Purpose Applications
Features
Product Features
– 1-10 HP in stock
– Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0
– NEMA Design B Performance/High starting torque
– Dual-drilled feet for mounting flexibility; Removable bases
– F1/F2 Reversible
– Lifting provision
– Sealed bearings
– 3-year warranty (extended warranty available)
– Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings
– Heavy duty cast iron housing with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware
– IP55 protection
– Condensation drain with plugs
– NEMA MG-1, Part 31, Table 12-2
– Dual voltage ratings suitable for part wind start on lower voltage
– Windings rated for 2200Vpeak voltage spikes
Applications
– Catfish pond aeration
– Pumps
– Fans
– Blowers
– Compressors
– Conveyors
– Material handling equipment
– Other industrial machinery
– Damp, dusty or dirty environments
– Suitable for use with VFDs
Options (May not be available for all models)
C-Flange Field Conversion Kits Available
Filters
| Model Number | Horsepower | RPM | Frame Size | Voltage |
|---|---|---|---|---|
| 10 | 1800 | 215T | 230/460 | |
| 10 | 3600 | 215T | 230/460 | |
| 7.5 | 1800 | 213T | 230/460 | |
| 7.5 | 3600 | 213T | 230/460 | |
| 5 | 1800 | 184T | 230/460 | |
| 5 | 3600 | 184T | 230/460 | |
| 3 | 1800 | 182T | 230/460 | |
| 3 | 3600 | 182T | 230/460 | |
| 2 | 1800 | 145T | 230/460 | |
| 2 | 3600 | 145T | 230/460 | |
| 1.5 | 1800 | 145T | 230/460 | |
| 1.5 | 3600 | 143T | 230/460 | |
| 1 | 1800 | 143T | 230/460 |
