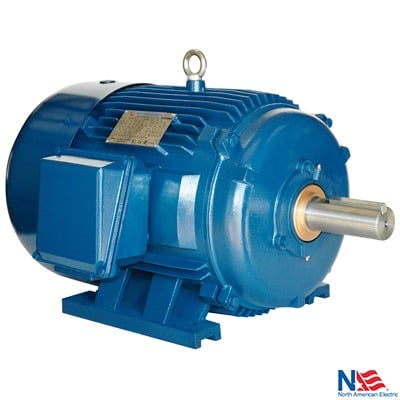

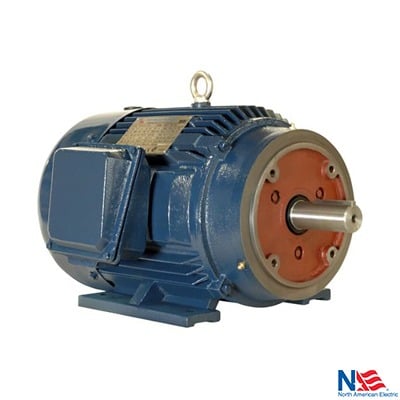

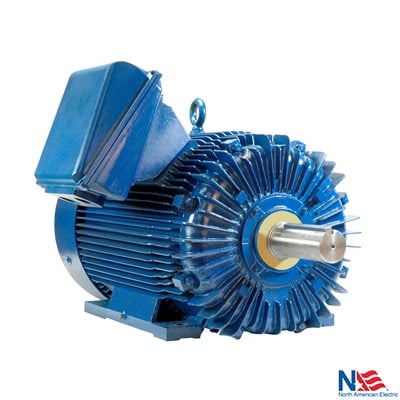

Severe Duty Cast Iron Motors

PE Series by North American Electric
Three-phase, NEMA Design B Motors for Demanding Industrial Applications

Description

Discover unmatched reliability with NAE’s General Purpose Heavy Duty Cast Iron Motors. Engineered for durability, these motors are built to withstand the most demanding industrial environments. With solid cast iron frames and robust construction, they offer exceptional stability, minimal vibration, and reduced noise levels, ensuring smooth and dependable operation.

Whether you’re in manufacturing or municipal sectors, count on NAE’s motors to deliver consistent performance day after day, maximizing uptime and minimizing maintenance costs. Upgrade to reliability with our heavy duty cast iron motors and experience the difference they bring to your operations.

Quick Specs & Features

Output: 1-600 hp
Speed: 1200 / 1800 / 3600 rpm
Voltage: 208-230/460/575
Service Factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0
Inverter Duty: 1-300 hp (20:1 VT; 10:1 CT)
Inverter Rated: 350-600 hp (10:1 VT; 5:1 CT)

Features

Product Features

– Service factor: 1.25 @ 60 Hz; 1.0 @ 50 Hz;

– Suitable for 575V @ 1.0

– NEMA Design B Performance/ High starting torque

– F1/F2 reversible from 254T-365T and 444T-449T

– Dual-drilled feet for mounting flexibility

– Lifting provisions on 182T frame and above

– Sealed bearings

– 3-year warranty (extended warranty available)

– Class F insulation system; Class B rise at full

load; Class H vacuum pressure impregnation

(VPI) resin for all windings

– Heavy duty cast iron housing or rolled steel

with corrosion-resistant epoxy paint, stainless

steel nameplate and zinc plated hardware

– IP23 protection

– Condensation drain with plugs

– NEMA MG- 1, Part 31, Table 12-12

– 40° C ambient continuous duty

– Dual voltage ratings suitable for part wind start

on lower voltage

– Windings rated for 2200V peak voltage spikes

Applications

Pumps
Fans
Blowers
Compressors
Conveyors
Material handling equipment
Other industrial machinery
Damp, dusty and dirty environments
Suitable for use with VFDs

Options (May not be available for all models)

C-Flange & D-Flange Field Conversion Kits Available
BPK Shaft grounding kits available

Filters

Model Number	Horsepower	RPM	Frame Size	Voltage
PE286TC-30-4-RB-AI	30	1800	286TC	230/460
PE284TC-25-4-RB-AI	25	1800	284TC	230/460
PE256TC-20-4-RB-AI	20	1800	256TC	230/460
PE254TC-15-4-RB-AI	15	1800	254TC	230/460
PE215TC-10-4-RB-AI	10	1800	215TC	230/460
PE213TC-7.5-4-RB-AI	7.5	1800	213TC	230/460
PE184TC-5-4-RB-AI	5	1800	184TC	230/460
PE182TC-3-4-RB-AI	3	1800	182TC	230/460
PE145TC-2-4-RB-AI	2	1800	145TC	230/460
PE145TC-1.5-4-RB-AI	1.5	1800	145TC	230/460
PE143TC-1-4-RB-AI	1	1800	143TC	230/460
PE449TC-300-6-AI	300	1200	449TC	230/460
PE449TC-300-4-AI	300	1800	449TC	230/460
PE449TSC-300-2-AI	300	3600	449TSC	230/460
PE449TC-250-6-AI	250	1200	449TC	230/460
PE449TC-250-4-AI	250	1800	449TC	230/460
PE449TSC-250-2-AI	250	3600	449TSC	230/460
PE449TC-200-6-AI	200	1200	449TC	230/460
PE447TC-200-4-AI	200	1800	447TC	230/460
PE447TSC-200-2-AI	200	3600	447TSC	230/460
PE447TC-150-6-AI	150	1200	447TC	230/460
PE445TC-150-4-AI	150	1800	445TC	230/460
PE445TSC-150-2-AI	150	3600	445TSC	230/460
PE445TC-125-6-AI	125	1200	445TC	230/460
PE444TC-125-4-AI	125	1800	444TC	230/460
PE444TSC-125-2-AI	125	3600	444TSC	230/460
PE444TC-100-6-AI	100	1200	444TC	230/460
PE405TSC-100-4-AI	100	1800	405TSC	230/460
PE405TC-100-4-AI	100	1800	405TC	230/460
PE405TSC-100-2-AI	100	3600	405TSC	230/460
PE405TC-75-6-AI	75	1200	405TC	230/460
PE365TSC-75-4-AI	75	1800	365TSC	230/460
PE365TC-75-4-AI	75	1800	365TC	230/460
PE365TC-75-2-AI	75	3600	365TC	230/460
PE365TSC-75-2-AI	75	3600	365TSC	230/460
PE404TC-60-6-AI	60	1200	404TC	230/460
PE364TC-60-4-AI	60	1800	364TC	230/460
PE364TSC-60-2-AI	60	3600	364TSC	230/460
PE365TC-50-6-AI	50	1200	365TC	230/460
PE326TSC-50-4-AI	50	1800	326TSC	230/460
PE326TC-50-4-AI	50	1800	326TC	230/460
PE326TC-50-2-AI	50	3600	326TC	230/460
PE326TSC-50-2-AI	50	3600	326TSC	230/460
PE364TC-40-6-AI	40	1200	364TC	230/460
PE324TC-40-4-AI	40	1800	324TC	230/460
PE324TSC-40-2-AI	40	3600	324TSC	230/460
PE326TC-30-6-AI	30	1200	326TC	230/460
PE286TC-30-4-AI	30	1800	286TC	230/460
PE286TSC-30-2-AI	30	3600	286TSC	230/460
PE324TC-25-6-AI	25	1200	324TC	230/460
PE284TC-25-4-AI	25	1800	284TC	230/460
PE284TC-25-2-AI	25	3600	284TC	230/460
PE284TSC-25-2-AI	25	3600	284TSC	230/460
PE286TC-20-6-AI	20	1200	286TC	230/460
PE256TC-20-4-AI	20	1800	256TC	230/460
PE256TC-20-2-AI	20	3600	256TC	230/460
PE284TC-15-6-AI	15	1200	284TC	230/460
PE254TC-15-4-AI	15	1800	254TC	230/460
PE254TC-15-2-AI	15	3600	254TC	230/460
PE256TC-10-6-AI	10	1200	256TC	230/460
PE215TC-10-4-AI	10	1800	215TC	230/460
PE215TC-10-2-AI	10	3600	215TC	230/460
PE254TC-7.5-6-AI	7.5	1200	254TC	230/460
PE213TC-7.5-4-AI	7.5	1800	213TC	230/460
PE213TC-7.5-2-AI	7.5	3600	213TC	230/460
PE215TC-5-6-AI	5	1200	215TC	230/460
PE184TC-5-4-AI	5	1800	184TC	230/460
PE184TC-5-2-AI	5	3600	184TC	230/460
PE213TC-3-6-AI	3	1200	213TC	230/460
PE182TC-3-4-AI	3	1800	182TC	230/460
PE182TC-3-2-AI	3	3600	182TC	230/460
PE184TC-2-6-AI	2	1200	184TC	230/460
PE145TC-2-4-AI	2	1800	145TC	230/460
PE145TC-2-2-AI	2	3600	145TC	230/460
PE182TC-1.5-6-AI	1.5	1200	182TC	230/460
PE145TC-1.5-4-AI	1.5	1800	145TC	230/460
PE143TC-1.5-2-AI	1.5	3600	143TC	230/460
PE145TC-1-6-AI	1	1200	145TC	230/460
PE143TC-1-4-AI	1	1800	143TC	230/460
PE449T-300-6-IN-AI	300	1200	449T	460
PE449T-300-6-AI	300	1200	449T	460
PE449T-300-4-IN-AI	300	1800	449T	460
PE449T-300-4-BB-IN-AI	300	1800	449T	460
PE449T-300-4-BB-AI	300	1800	449T	460
PE449T-300-4-AI	300	1800	449T	460
PE449TS-300-2-IN-AI	300	3600	449TS	460
PE449TS-300-2-AI	300	3600	449TS	460
PE449T-250-6-IN-AI	250	1200	449T	460
PE449T-250-6-AI	250	1200	449T	460
PE449T-250-4-IN-AI	250	1800	449T	460
PE449T-250-4-AI	250	1800	449T	460
PE449TS-250-2-AI	250	3600	449TS	460
PE449T-200-6-IN-AI	200	1200	449T	460
PE449T-200-6-AI	200	1200	449T	460
PE447TS-200-4-AI	200	1800	447TS	460
PE447T-200-4-IN-AI	200	1800	447T	460
PE447T-200-4-BB-IN-AI	200	1800	447T	460
PE447T-200-4-BB-AI	200	1800	447T	460
PE447T-200-4-AI	200	1800	447T	460
PE447TS-200-2-IN-AI	200	3600	447TS	460
PE447TS-200-2-AI	200	3600	447TS	460
PE447T-150-6-IN-AI	150	1200	447T	460
PE447T-150-6-AI	150	1200	447T	460
PE445TS-150-4-AI	150	1800	445TS	460
PE445T-150-4-IN-AI	150	1800	445T	460
PE445T-150-4-BB-IN-AI	150	1800	445T	460
PE445T-150-4-BB-AI	150	1800	445T	460
PE445T-150-4-AI	150	1800	445T	460
PE445TS-150-2-IN-AI	150	3600	445TS	460
PE445TS-150-2-AI	150	3600	445TS	460
PE445T-125-6-IN-AI	125	1200	445T	460
PE445T-125-6-AI	125	1200	445T	460
PE444T-125-4-IN-AI	125	1800	444T	460
PE444T-125-4-BB-IN-AI	125	1800	444T	460
PE444T-125-4-AI	125	1800	444T	460
PE444TS-125-2-IN-AI	125	3600	444TS	460
PE444TS-125-2-AI	125	3600	444TS	460
PE444T-100-6-IN-AI	100	1200	444T	230/460
PE444T-100-6-AI	100	1200	444T	230/460
PE405T-100-4-BB-IN-AI	100	1800	405T	230/460
PE405T-100-4-BB-AI	100	1800	405T	230/460
PE405T-100-4-AI	100	1800	405T	230/460
PE405TS-100-2-AI	100	3600	405TS	230/460
PE405T-75-6-AI	75	1200	405T	230/460
PE365TS-75-4-AI	75	1800	365TS	230/460
PE365T-75-4-AI	75	1800	365T	230/460
PE365T-75-2-AI	75	3600	365T	230/460
PE365TS-75-2-AI	75	3600	365TS	230/460
PE404T-60-6-AI	60	1200	404T	230/460
PE364TS-60-4-AI	60	1800	364TS	230/460
PE364T-60-4-AI	60	1800	364T	230/460
PE364TS-60-2-AI	60	3600	364TS	230/460
PE365T-50-6-AI	50	1200	365T	230/460
PE326TS-50-4-AI	50	1800	326TS	230/460
PE326T-50-4-AI	50	1800	326T	230/460
PE326T-50-2-AI	50	3600	326T	230/460
PE326TS-50-2-AI	50	3600	326TS	230/460
PE364T-40-6-AI	40	1200	364T	230/460
PE324TS-40-4-AI	40	1800	324TS	230/460
PE324T-40-4-AI	40	1800	324T	230/460
PE324TS-40-2-AI	40	3600	324TS	230/460
PE326T-30-6-AI	30	1200	326T	230/460
PE286TS-30-4-AI	30	1800	286TS	230/460
PE286T-30-4-AI	30	1800	286T	230/460
PE286TS-30-2-AI	30	3600	286TS	230/460
PE324T-25-6-AI	25	1200	324T	230/460
PE284T-25-4-AI	25	1800	284T	230/460
PE284TS-25-2-AI	25	3600	284TS	230/460
PE286T-20-6-AI	20	1200	286T	230/460
PE256T-20-4-AI	20	1800	256T	230/460
PE256T-20-2-AI	20	3600	256T	230/460
PE284T-15-6-AI	15	1200	284T	230/460
PE254T-15-4-AI	15	1800	254T	230/460
PE254T-15-2-AI	15	3600	254T	230/460
PE256T-10-6-AI	10	1200	256T	230/460
PE215T-10-4-AI	10	1800	215T	230/460
PE215T-10-2-AI	10	3600	215T	230/460
PE254T-7.5-6-AI	7.5	1200	254T	230/460
PE213T-7.5-4-AI	7.5	1800	213T	230/460
PE213T-7.5-2-AI	7.5	3600	213T	230/460
PE215T-5-6-AI	5	1200	215T	230/460
PE184T-5-4-AI	5	1800	184T	230/460
PE184T-5-2-AI	5	3600	184T	230/460
PE213T-3-6-AI	3	1200	213T	230/460
PE182T-3-4-AI	3	1800	182T	230/460
PE182T-3-2-AI	3	3600	182T	230/460
PE184T-2-6-AI	2	1200	184T	230/460
PE145T-2-4-AI	2	1800	145T	230/460
PE145T-2-2-AI	2	3600	145T	230/460
PE182T-1.5-6-AI	1.5	1200	182T	230/460
PE145T-1.5-4-AI	1.5	1800	145T	230/460
PE143T-1.5-2-AI	1.5	3600	143T	230/460
PE145T-1-6-AI	1	1200	145T	230/460
PE143T-1-4-AI	1	1800	143T	230/460
