Compressor Duty – ODP

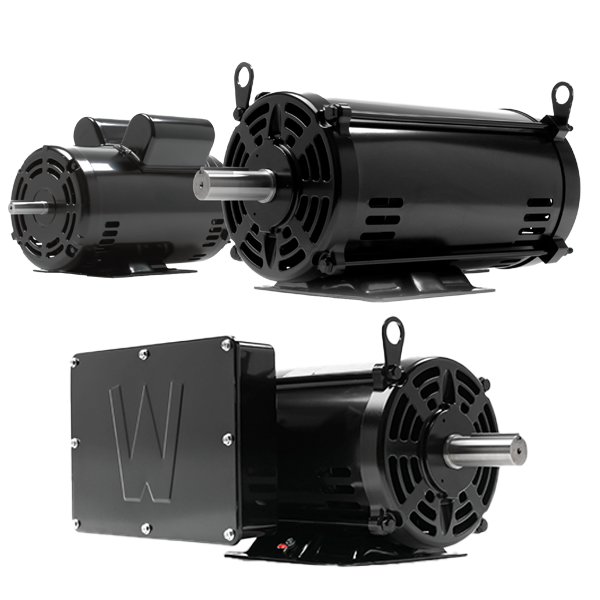

WorldWide Electric manufactures single-phase, open drip proof Compressor Duty Motors, They are designed for continuous or frequent cycling, extended use, thermal stress, and heavy loads, ensuring consistent power for compressed air-powered tools or machinery.
Open Drip Proof (ODP) Enclosure
Single-phase
2 – 3 hp, 115/230 Volts
5 – 10 hp, 230 Volts
3600 and 1800 rpm at 60 Hz
Frame Size: 56, 56HZ1, 182 – 215T Available
1.15 Service Factor
Due to their versatility, compressor duty motors are an excellent use of limited inventory space for stocking distributors. All orders for quantities of 25 or more 56-frame motors qualify for prepaid freight.
Description
Sample Part Number: CDM3-36-56. Each model number contains the product family, horsepower, rpm, and frame size. Ratings for hp with a decimal will carry a decimal to the model number, i.e. 7.5 hp becomes CDM7.5-18-213T.
- WorldWide Compressor Duty Motors are designed for continuous or frequent cycling, extended use, thermal stress, and heavy loads, ensuring consistent power for compressed air-powered tools or machinery.
- Industrial Manufacturing: Driving pneumatic machinery, operating valves, and powering manufacturing equipment.
- Construction: Providing compressed air for tools like nail guns, sanders, and sprayers.
- Automotive: Powering pneumatic tools, inflating tires, and operating air brakes.
- Food and Beverage: Used in various processes like packaging, filling, and controlling equipment.
- Agriculture: Powering pneumatic systems for various farm operations.
Features
Construction
- Manual overload for 2-5 HP, 2-pole (3600 rpm) configurations
- Rolled steel frame
- V-Ring seal on drive end (DE)
- Vacuum Pressure Impregnation (VPI) system
- 2 – 3 hp, 3600 rpm motors are Premium Efficiency*
- Two-year warranty
Protection & Environmental
- IP23 protection
Standards & Approvals
- NEMA MG 00001
- CE Certified
- UL Recognized
Filters
| Model Number | Horsepower | RPM | Frame Size |
|---|---|---|---|
| 10 | 1800 | 215T | |
| 7.5 | 1800 | 213T | |
| 5 | 3600 | 56HZ | |
| 5 | 1800 | 184T | |
| 3 | 1800 | 182T | |
| 3 | 3600 | 56 | |
| 2 | 3600 | 56 |
