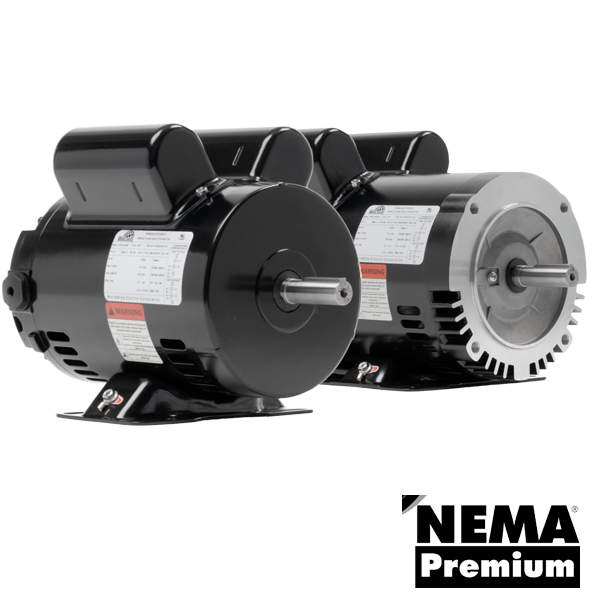

Single-Phase Fractional – ODP
WorldWide Electric manufactures single-phase, open drip proof motors for general purpose applications. They are ideal for a wide range of applications in clean, dry indoor environments.
Open Drip Proof (ODP) Enclosure
1/3 – 2 hp, 115/230 Volts
3 hp, 230 Volts
3600 and 1800 rpm at 60 Hz
Frame Size: 56 & 56CB
1.35 SF – 1/3 HP
1.25 SF – ½ – 1 HP
1.15 SF – 1.5 – 3 HP
Due to their versatility, single-phase open drip proof motors are an excellent use of limited inventory space for stocking distributors. All orders for quantities of 25 or more 56-frame motors qualify for prepaid freight.
Description
Sample Part Number: OPE13-18-56CB. Each model number contains the product family, horsepower, rpm, and frame size. Ratings for hp with a decimal will carry a decimal to the model number, i.e. 1.5 hp becomes OPE1.5-18-56.
The ODP frame provides efficient cooling and cost-effectiveness:
- HVAC Systems: Handlers, blowers, and fan coil units within heating, ventilation, and air conditioning systems.
- Pumps: Residential and commercial water transfer pumps.
- Machine Tools: Bench grinders, drill presses, and table saws, often in workshops and light manufacturing settings.
- Material Handling: Conveyors and other material handling equipment in light industrial environments
Features
Construction
- Rolled steel frame
- V-Ring seal on drive end (DE)
- Vacuum Pressure Impregnation (VPI) system
- Premium Efficiency in accordance with small motor rule
- Two-year warranty
Protection & Environmental
- IP23 protection
Standards & Approvals
- NEMA MG 00001
- CE Certified
- UL Recognized
Filters
| Model Number | Horsepower | RPM | Frame Size |
|---|---|---|---|
| 0.33 | 1800 | 56C | |
| 0.33 | 1800 | 56 | |
| 0.33 | 3600 | 56C | |
| 0.33 | 3600 | 56 | |
| 3 | 3600 | 56C | |
| 3 | 3600 | 56 | |
| 3 | 1800 | 56C | |
| 3 | 1800 | 56 | |
| 2 | 3600 | 56C | |
| 2 | 3600 | 56 | |
| 2 | 1800 | 56C | |
| 2 | 1800 | 56 | |
| 1.5 | 3600 | 56C | |
| 1.5 | 3600 | 56 | |
| 1.5 | 1800 | 56C | |
| 1.5 | 1800 | 56 | |
| 1 | 3600 | 56C | |
| 1 | 3600 | 56 | |
| 1 | 1800 | 56C | |
| 1 | 1800 | 56 | |
| 0.75 | 1800 | 56C | |
| 0.75 | 1800 | 56 | |
| 0.75 | 3600 | 56C | |
| 0.75 | 3600 | 56 | |
| 0.5 | 1800 | 56C | |
| 0.5 | 1800 | 56 | |
| 0.5 | 3600 | 56C | |
| 0.5 | 3600 | 56 |
