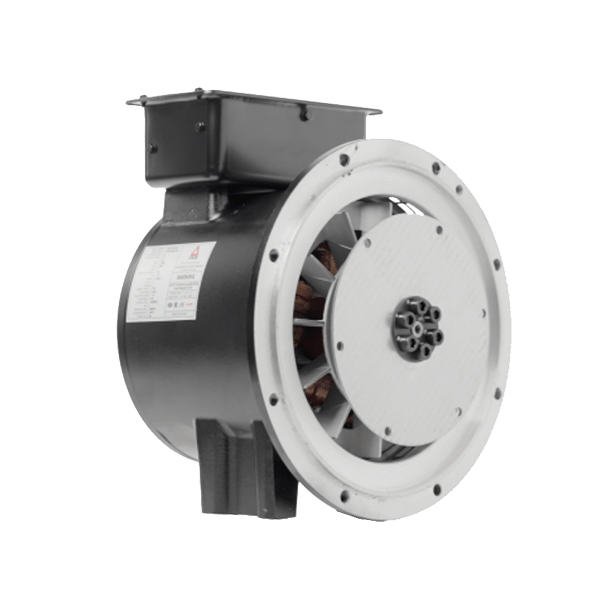

Pancake Style
WorldWide Electric is a leading manufacturer of Pancake Style, AC synchronous generators. They provide exceptional performance and reliability, with consistent power for standby and continuous-duty light tower applications. They are single bearing, capacitor driven, and offer single frequency as standard, but they also come in dual frequency models.
WorldWide Electric generators, often called generator-ends or alternators, are interchangeable with Marathon, Stamford® Newage and Onan generators, as well as other generator manufacturers.
Power Ratings
6 – 8 kW rated to 40°C
Single-Phase60 Hz Power at 1800 RPM
50 Hz Power at 1500 RPM
Dual and single-frequency options
Capacitor-controlled voltage regulation
Description
Model Configurations
- 4 Lead, Single-Phase, 4 Pole, 60 Hz
- 4 Lead, Single-Phase, 4 Pole, 50 Hz
Applications
- Light Tower Generators
- Mobile (Back-up) Generators
Features
All WorldWide Generators
- Self-ventilated for reliability.
- Designed and built per IEC 600341-1 & -2 requirements, BS4990 & 5000, NEMA MG1 2006, CSA, and CE and produced in an ISO-certified facility.
- IP 22 Rated with Enhanced varnishing and epoxy coatings to withstand harsh environments.
- Bolted diodes eliminate the need for a soldering iron to check rotating diodes in the field.
- Stranded lead wires provide a more reliable conductor when changing output configuration.
- Essex wire is used for improved reliability and performance.
Downloads
Filters
| Model Number | RPM | Phase | kW @ 105C | kW @ 125C | Efficiency % |
|---|---|---|---|---|---|
| 1800 | Single-Phase | 5.4 | 6 | 78 | |
| 1800 | Single-Phase | 7.2 | 8 | 78 | |
| 1500 | Single-Phase | 7.2 | 8 | 78 |
