FHN Series

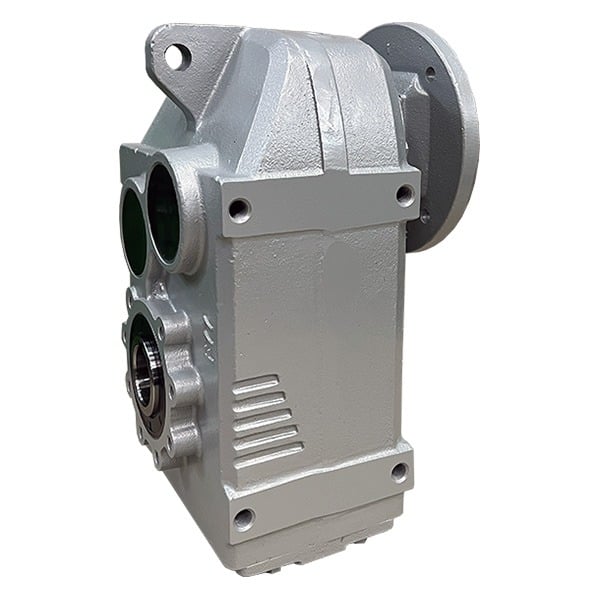

Worldwide Electric is a trusted manufacturer of the FHN Series of Parallel Shaft Helical Gear Reducers.They are engineered for high-efficiency operation in heavy industrial applications, such as driving belt, screw and chain conveyors, presses, extruders, and gantry cranes. Their rugged construction ensures long-term durability and minimal maintenance.

They offer universal compatibility with NEMA C-face motors, a hollow bore output, and a broad range of power and output torques. Powerlock options are available.

Ratios: 4:1 – 110:1
Box Sizes: 37 – 97
Power Lock Box Sizes 87 – 97
HP Range: ¼ hp to 25 hp
Power Lock HP Range: 3/4 hp to 25 hp

Description

The WorldWide Electric FHN Parallel Shaft Helical Speed Reducers reduce output speed (RPM) and increase torque. The helical gear design provides high efficiency for your applications, such as driving belt, screw and chain conveyors, presses, extruders, and gantry cranes.

Modular Design, Simplified Retrofitting — The NEMA quill input design allows you to replace a motor or gear reducer separately if either fails. The modular design allows drop-in replacement for most European-produced parallel speed reducers. The hollow bore allows direct connection to the shaft so a coupling is not required.

Efficient, Strong, and Low Noise — All housings are cast iron for increased strength and reliability. Precision machined, 20rMo alloy steel gears reduce stress and corrosion while providing efficient rotation and quieter operation. Heat-treated pinions and shafts provide durability.

Sample Part Number: FHN67-40/1-182TC. Each model number contains the product family, box size, nominal ratio, and motor frame. When selecting ratio, replace colon with slash, e.g. 10:1 becomes 10/1.

Features

Ratios: 4:1 – 110:1 | Power Lock 7:1 – 110:1
Box Sizes: 37 – 97 | Power Lock 87 – 97
HP Range: ¼ hp to 25 hp | Power Lock 3/4 hp to 25 hp
Housing: FCD45 Cast Iron
Two-year Warranty
All cast iron housing for unquestioned strength and reliability
Precision machined gears for quieter operation and superior strength
Flanges designed to accept NEMA C-face motors
Drop-in compatibility with most major European-produced reducer brands
Embedded, double-lipped seals on shafts and hubs keep oil in and contaminants out.
Pre-filled with HD320 Mineral Oil for M1 mounting position

Downloads

Gear Reducer Catalog (PDF)

Brochure (PDF)

Installation & Operation Manual (PDF)

Filters

Model Number	Box Size	Ratio	Frame Size
FHN57-30/1-H-143/5TC	57	30:1	143/5TC
FHN57-20/1-H-143/5TC	57	20:1	143/5TC
FHN57-15/1-H-143/5TC	57	15:1	143/5TC
FHN57-10/1-H-143/5TC	57	10:1	143/5TC
FHN57-5/1-H-143/5TC	57	5:1	143/5TC
FHN57-60/1-H-56C	57	60:1	56C
FHN57-50/1-H-56C	57	50:1	56C
FHN57-50/1-H-143/5TC	57	50:1	143/5TC
FHN57-40/1-H-56C	57	40:1	56C
FHN57-40/1-H-143/5TC	57	40:1	143/5TC
FHN97-80/1-H-213/5TC-PL	97	80
FHN97-80/1-H-213/5TC	97	80
FHN97-7/1-H-284TC-PL	97	7
FHN97-7/1-H-284TC	97	7
FHN97-7/1-H-254/6TC-PL	97	7
FHN97-7/1-H-254/6TC	97	7
FHN97-7/1-H-213/5TC-PL	97	7
FHN97-7/1-H-213/5TC	97	7
FHN97-65/1-H-254TC-PL	97	65
FHN97-65/1-H-254TC	97	65
FHN97-65/1-H-213/5TC-PL	97	65
FHN97-65/1-H-213/5TC	97	65
FHN97-65/1-H-182/4TC-PL	97	65
FHN97-65/1-H-182/4TC	97	65
FHN97-50/1-H-254TC-PL	97	50
FHN97-50/1-H-254TC	97	50
FHN97-50/1-H-213/5TC-PL	97	50
FHN97-50/1-H-213/5TC	97	50
FHN97-50/1-H-182/4TC-PL	97	50
FHN97-50/1-H-182/4TC	97	50
FHN97-45/1-H-254/6TC-PL	97	45
FHN97-45/1-H-254/6TC	97	45
FHN97-45/1-H-213/5TC-PL	97	45
FHN97-45/1-H-213/5TC	97	45
FHN97-45/1-H-182/4TC-PL	97	45
FHN97-45/1-H-182/4TC	97	45
FHN97-30/1-H-213/5TC-PL	97	30
FHN97-30/1-H-213/5TC	97	30
FHN97-30/1-H-182/4TC-PL	97	30
FHN97-30/1-H-182/4TC	97	30
FHN97-20/1-H-254/6TC-PL	97	20
FHN97-20/1-H-254/6TC	97	20
FHN97-20/1-H-213/5TC-PL	97	20
FHN97-20/1-H-213/5TC	97	20
FHN97-20/1-H-182/4TC-PL	97	20
FHN97-20/1-H-182/4TC	97	20
FHN97-15/1-H-284TC-PL	97	15
FHN97-15/1-H-284TC	97	15
FHN97-15/1-H-254/6TC-PL	97	15
FHN97-15/1-H-254/6TC	97	15
FHN97-15/1-H-213/5TC-PL	97	15
FHN97-15/1-H-213/5TC	97	15
FHN97-100/1-H-213/5TC-PL	97	100
FHN97-100/1-H-213/5TC	97	100
FHN97-10/1-H-284TC-PL	97	10
FHN97-10/1-H-284TC	97	10
FHN97-10/1-H-254/6TC-PL	97	10
FHN97-10/1-H-254/6TC	97	10
FHN97-10/1-H-213/5TC-PL	97	10
FHN97-10/1-H-213/5TC	97	10
FHN87-80/1-H-213/5TC-PL	87	80
FHN87-80/1-H-213/5TC	87	80
FHN87-80/1-H-182/4TC-PL	87	80
FHN87-80/1-H-182/4TC	87	80
FHN87-70/1-H-213/5TC-PL	87	70
FHN87-70/1-H-213/5TC	87	70
FHN87-70/1-H-182/4TC-PL	87	70
FHN87-70/1-H-182/4TC	87	70
FHN87-7.5/1-H-254/6TC-PL	87	7.5
FHN87-7.5/1-H-254/6TC	87	7.5
FHN87-7.5/1-H-213/5TC-PL	87	7.5
FHN87-7.5/1-H-213/5TC	87	7.5
FHN87-7.5/1-H-182/4TC-PL	87	7.5
FHN87-7.5/1-H-182/4TC	87	7.5
FHN87-60/1-H-213/5TC-PL	87	60
FHN87-60/1-H-213/5TC	87	60
FHN87-60/1-H-182/4TC-PL	87	60
FHN87-60/1-H-182/4TC	87	60
FHN87-50/1-H-182TC-PL	87	50
FHN87-50/1-H-182TC	87	50
FHN87-50/1-H-145TC-PL	87	50
FHN87-50/1-H-145TC	87	50
FHN87-45/1-H-182/4TC-PL	87	45
FHN87-45/1-H-182/4TC	87	45
FHN87-45/1-H-145TC-PL	87	45
FHN87-45/1-H-145TC	87	45
FHN87-30/1-H-182/4TC-PL	87	30
FHN87-30/1-H-182/4TC	87	30
FHN87-20/1-H-254/6TC-PL	87	20
FHN87-20/1-H-254/6TC	87	20
FHN87-20/1-H-213/5TC-PL	87	20
FHN87-20/1-H-213/5TC	87	20
FHN87-20/1-H-182/4TC-PL	87	20
FHN87-20/1-H-182/4TC	87	20
FHN87-15/1-H-254/6TC-PL	87	15
FHN87-15/1-H-254/6TC	87	15
FHN87-15/1-H-213/5TC-PL	87	15
FHN87-15/1-H-213/5TC	87	15
FHN87-15/1-H-182/4TC-PL	87	15
FHN87-15/1-H-182/4TC	87	15
FHN87-110/1-H-182/4TC-PL	87	110
FHN87-110/1-H-182/4TC	87	110
FHN87-10/1-H-254/6TC-PL	87	10
FHN87-10/1-H-254/6TC	87	10
FHN87-10/1-H-213/5TC-PL	87	10
FHN87-10/1-H-213/5TC	87	10
FHN87-10/1-H-182/4TC-PL	87	10
FHN87-10/1-H-182/4TC	87	10
FHN77-95/1-H-182TC	77	95
FHN77-95/1-H-143/5TC	77	95
FHN77-80/1-H-182TC	77	80
FHN77-80/1-H-145TC	77	80
FHN77-7.5/1-H-213/5TC	77	7.5
FHN77-7.5/1-H-182/4TC	77	7.5
FHN77-7.5/1-H-143/5TC	77	7.5
FHN77-60/1-H-182/4TC	77	60
FHN77-60/1-H-143/5TC	77	60
FHN77-50/1-H-213TC	77	50
FHN77-50/1-H-182/4TC	77	50
FHN77-50/1-H-143/5TC	77	50
FHN77-40/1-H-213TC	77	40
FHN77-40/1-H-182/4TC	77	40
FHN77-40/1-H-143/5TC	77	40
FHN77-30/1-H-213/5TC	77	30
FHN77-30/1-H-182/4TC	77	30
FHN77-30/1-H-143/5TC	77	30
FHN77-20/1-H-182/4TC	77	20
FHN77-20/1-H-143/5TC	77	20
FHN77-15/1-H-213/5TC	77	15
FHN77-15/1-H-182/4TC	77	15
FHN77-10/1-H-213/5TC	77	10
FHN77-10/1-H-182/4TC	77	10
FHN77-10/1-H-143/5TC	77	10
FHN67-90/1-H-56C	67	90
FHN67-90/1-H-143/5TC	67	90
FHN67-65/1-H-56C	67	65
FHN67-65/1-H-143/5TC	67	65
FHN67-45/1-H-56C	67	45
FHN67-45/1-H-182TC	67	45
FHN67-45/1-H-143/5TC	67	45
FHN67-40/1-H-56C	67	40
FHN67-40/1-H-182TC	67	40
FHN67-40/1-H-143/5TC	67	40
FHN67-30/1-H-56C	67	30
FHN67-30/1-H-182/4TC	67	30
FHN67-30/1-H-143/5TC	67	30
FHN67-20/1-H-56C	67	20
FHN67-20/1-H-182/4TC	67	20
FHN67-20/1-H-143/5TC	67	20
FHN67-15/1-H-56C	67	15
FHN67-15/1-H-182/4TC	67	15
FHN67-15/1-H-143/5TC	67	15
FHN67-110/1-H-56C	67	110
FHN67-110/1-H-143TC	67	110
FHN67-10/1-H-56C	67	10
FHN67-10/1-H-182/4TC	67	10
FHN67-10/1-H-143/5TC	67	10
FHN47-85/1-H-56C	47	85
FHN47-70/1-H-56C	47	70
FHN47-70/1-H-143TC	47	70
FHN47-7/1-H-143/5TC	47	7
FHN47-60/1-H-56C	47	60
FHN47-60/1-H-143TC	47	60
FHN47-6/1-H-143/5TC	47	6
FHN47-50/1-H-56C	47	50
FHN47-50/1-H-143/5TC	47	50
FHN47-40/1-H-56C	47	40
FHN47-40/1-H-143/5TC	47	40
FHN47-30/1-H-56C	47	30
FHN47-30/1-H-143/5TC	47	30
FHN47-20/1-H-56C	47	20
FHN47-20/1-H-143/5TC	47	20
FHN47-15/1-H-56C	47	15
FHN47-15/1-H-143/5TC	47	15
FHN47-10/1-H-56C	47	10
FHN47-10/1-H-143TC	47	10
FHN37-8/1-H-56C	37	8
FHN37-8/1-H-143/5TC	37	8
FHN37-60/1-H-56C	37	60
FHN37-50/1-H-56C	37	50
FHN37-5/1-H-56C	37	5
FHN37-5/1-H-143/5TC	37	5
FHN37-40/1-H-56C	37	40
FHN37-40/1-H-143TC	37	40
FHN37-30/1-H-56C	37	30
FHN37-30/1-H-143TC	37	30
FHN37-25/1-H-56C	37	25
FHN37-25/1-H-143TC	37	25
FHN37-15/1-H-56C	37	15
FHN37-15/1-H-143TC	37	15
FHN37-10/1-H-56C	37	10
FHN37-10/1-H-143/5TC	37	10
